Masking Solutions: What They Are and Why They're Essential

What Are Masking Solutions?

Core Components of Masking Systems

Silicone Plugs and Caps: Made from high-temperature silicone rubber, these flexible, reusable masking components are designed to withstand extreme temperatures (typically up to 600°F/315°C) without degrading.

> Silicone Plugs come in various configurations:

• Tapered Plugs: Conical in shape, these versatile plugs fit a range of hole sizes while maintaining a tight seal, making them ideal for masking threaded and non-threaded blind holes.
• Pull Plugs: Designed specifically for through-holes, these plugs feature an extended section for easy removal after the coating process is complete.
• Flangeless Plugs: Also known as ribbed plugs, these feature a textured exterior to enhance grip and prevent displacement during high-temperature processes.
• Chamfer Pull Plugs: Engineered to provide effective sealing over leading threads and chamfered edges in through holes, these plugs are made from softer, more flexible silicone.
• Thread Plugs: Designed for blind holes requiring an internal seal at the leading thread or chamfer, these compact plugs ensure a clean masking result.

> Silicone Caps: These protective covers shield external features like bolts, studs, and tube ends:

• Standard Caps: The most commonly used masking caps, available in a wide range of sizes to fit various diameters.
• Flanged Caps: Providing enhanced protection by covering not only the external stud but also the surrounding surface area.

> High-Temperature Masking Tapes: Polyester tapes capable of withstanding sustained temperatures above 400°F (204°C) without degrading, available in various widths for different applications.

> Die-Cut Masking Products: Pre-cut shapes designed for specific applications, eliminating the need for custom cutting and ensuring consistency.

Why Masking Is Essential

Masking isn't just an optional step in finishing processes—it's a fundamental requirement that serves several critical purposes:

1. Maintaining Functional Integrity

Many components require specific areas to remain uncoated to function properly.

For example:

• Threaded Connections: Coating buildup on threads can prevent proper assembly or require post-processing to restore functionality.
• Precision Fits: Components with tight tolerances, such as bearing surfaces or cylinder bores, must remain uncoated to maintain their dimensional specifications.
• Electrical Connections: Surfaces that require electrical conductivity must remain uncoated, as many finishes act as insulators that would prevent proper electrical contact.
• Sealing Surfaces: Areas where gaskets or seals make contact often need to remain uncoated to ensure proper sealing and prevent leaks.

2. Ensuring Aesthetic Quality

Beyond functional considerations, masking plays a crucial role in achieving desired aesthetic outcomes:

• Clean Lines: Proper masking creates sharp, clean transitions between coated and uncoated areas.
• Multi-Color Applications: When applying multiple colors or finishes to a single part, masking is essential for creating distinct boundaries.
• Decorative Elements: Logos, text, or patterns can be created through strategic masking techniques.

3. Economic Benefits

Effective masking delivers significant economic advantages:

• Reduced Rework: Proper masking prevents coating issues that would require costly stripping and reprocessing.
• Material Efficiency: By precisely controlling where coatings are applied, masking reduces waste of expensive finishing materials.
• Labor Savings: While masking requires an initial investment of time, it prevents time-consuming post-processing to remove unwanted coatings.
• Extended Part Life: By ensuring proper coating application, masking helps parts perform as designed for their full intended lifespan.

> Learn how to improve your masking operations

Masking Across Different Finishing Processes

Different finishing processes present unique masking challenges and requirements:

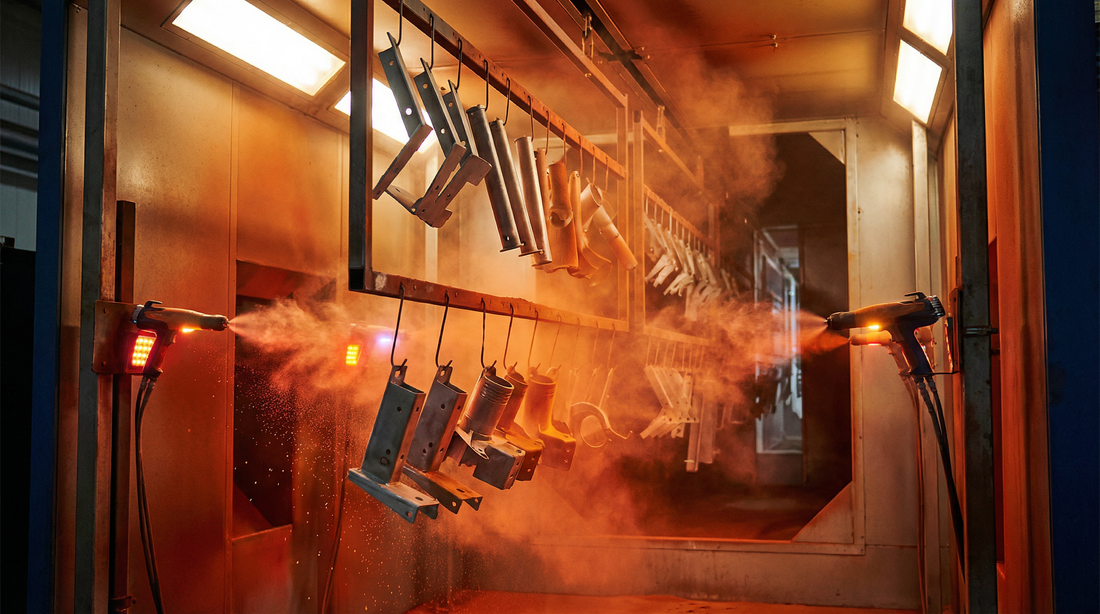

Powder Coating

Powder coating applies a dry, powdered material that is electrostatically charged and then cured at high temperatures (typically 350-400°F/175-205°C). This process creates a thick, durable finish but presents specific masking challenges:

• Temperature Resistance: Masking materials must withstand high curing temperatures without degrading.
• Thickness Considerations: Powder coating is thicker than most liquid finishes (2-4 mils typical thickness), requiring masking that accounts for this buildup.
• Electrostatic Properties: Since powder coating uses electrostatic attraction, masking must effectively insulate areas where powder should not adhere.

Anodizing

Anodizing is an electrochemical process that converts the surface of aluminum into a durable, corrosion-resistant oxide layer. Masking for anodizing must consider:

• Chemical Resistance: Masking materials must withstand strong acids and other chemicals used in the anodizing process.
• Electrical Insulation: Since anodizing is an electrochemical process, masking must provide electrical insulation to prevent oxide formation in protected areas.
• Precision Requirements: Anodizing creates a very thin surface layer (typically 0.0002-0.001 inches), requiring precise masking for clean lines.

E-Coating

E-coating (electrocoating) uses electrical current to deposit paint on a part submerged in a paint bath. Masking considerations include:

• Electrical Insulation: Masking must prevent electrical current from reaching areas that should remain uncoated.
• Liquid Penetration Resistance: Masking must create watertight seals to prevent the liquid coating from reaching protected areas.
• Chemical Compatibility: Masking materials must be compatible with the chemicals in the e-coating bath.

Plating

Plating processes apply metal coatings through electrochemical processes. Masking for plating must address:

• Chemical Resistance: Plating solutions often contain strong acids or bases that can degrade inadequate masking materials.
• Electrical Insulation: As with other electrochemical processes, masking must provide electrical insulation.
• Precision Edge Definition: Many plating applications require extremely precise boundaries between plated and unplated areas.

Selecting the Right Masking Solution

Choosing the appropriate masking solution involves considering several key factors:

1. Process Parameters

• Temperature: Select masking materials rated for the maximum temperature of your process.
• Chemical Exposure: Ensure masking materials are compatible with all chemicals involved in your process.
• Process Duration: Consider how long masking will be exposed to process conditions.

2. Part Geometry

• Internal vs. External Features: Different masking approaches are needed for internal holes versus external protrusions.
• Size and Tolerance: The dimensions and precision requirements of the area to be masked will influence your choice of masking method.
• Accessibility: Consider how easily the area can be masked and unmasked.

3. Production Considerations

• Volume: High-volume production may justify custom masking solutions that increase efficiency.
• Reusability: Consider whether one-time or reusable masking is more economical for your application.
• Application and Removal Time: Factor in labor costs for applying and removing masking.

Common Masking Challenges and Solutions

Even with proper planning, masking can present challenges. Here are some common issues and their solutions:

Challenge: Masking Complex Geometries

• Solution: For intricate shapes or hard-to-reach areas, consider custom-molded silicone masks that conform precisely to your part's geometry. While these require initial tooling investment, they can dramatically improve masking efficiency and quality for complex parts.

> Contact us for custom silicone masking solutions

Challenge: Coating Seepage Under Masks

• Solution: Ensure proper size selection of masking components. For plugs, choose sizes 10-15% larger than the hole diameter for powder coating applications and up to 15% larger for wet processes like e-coating and anodizing.
• For caps, select sizes 5-10% smaller than the diameter of the feature to be masked.

Challenge: Difficult Masking Element Removal

• Solution: Design your process to remove masking materials at the optimal time – often while parts are still warm from curing, but not hot enough to cause injury.
• Pull masking tapes at a shallow angle rather than perpendicular to the surface to avoid adhesive residue.

Challenge: Inconsistent Masking Results

• Solution: Develop standardized masking procedures with clear documentation and training. Color-coding masking components by size can reduce errors, and creating jigs or fixtures can ensure consistent placement.

Conclusion: The Foundation of Quality Surface Treatment
