Engineered for your process

  • Custom Die-Cuts for Scalable Production

    Standard die-cut discs, donuts, and tape rolls are well suited for basic flat-surface masking tasks.

    However, they reach their limits with complex parts, such as irregular geometries, multi-feature components requiring simultaneous masking of multiple zones, or high-volume production where manual cutting slows throughput and increases variability.

    Custom die-cuts provide a more effective solution.

    Our die-cut masking sheets are manufactured to your specifications based on CAD data, drawings, or physical samples. Each part fits precisely, masks only required areas, and removes cleanly after every cycle. This ensures consistent protection, reduces overspray and edge bleed, and minimizes rework from manual tape masking.

  • Fast Turnaround Custom Manufacturing

    • Part designs are confirmed within 48 hours, with production in 1 to 2 weeks. The process is optimized for fast turnaround and low tooling cost.
    • Tooling is a one-time investment and retained for the lifetime of your project at no additional charge.
    • Per-unit costs are significantly lower than manual masking in repeat or high-volume production.
    • Sample sets are available to validate fit, adhesion, and performance before full production.
    • Materials are rated up to 260°C / 500°F with ±0.1 mm accuracy, including polyimide, polyester, crepe, and metal foils.
1 2

Precision die-cuts in any material and form-factor

Request a Custom Masking Solution

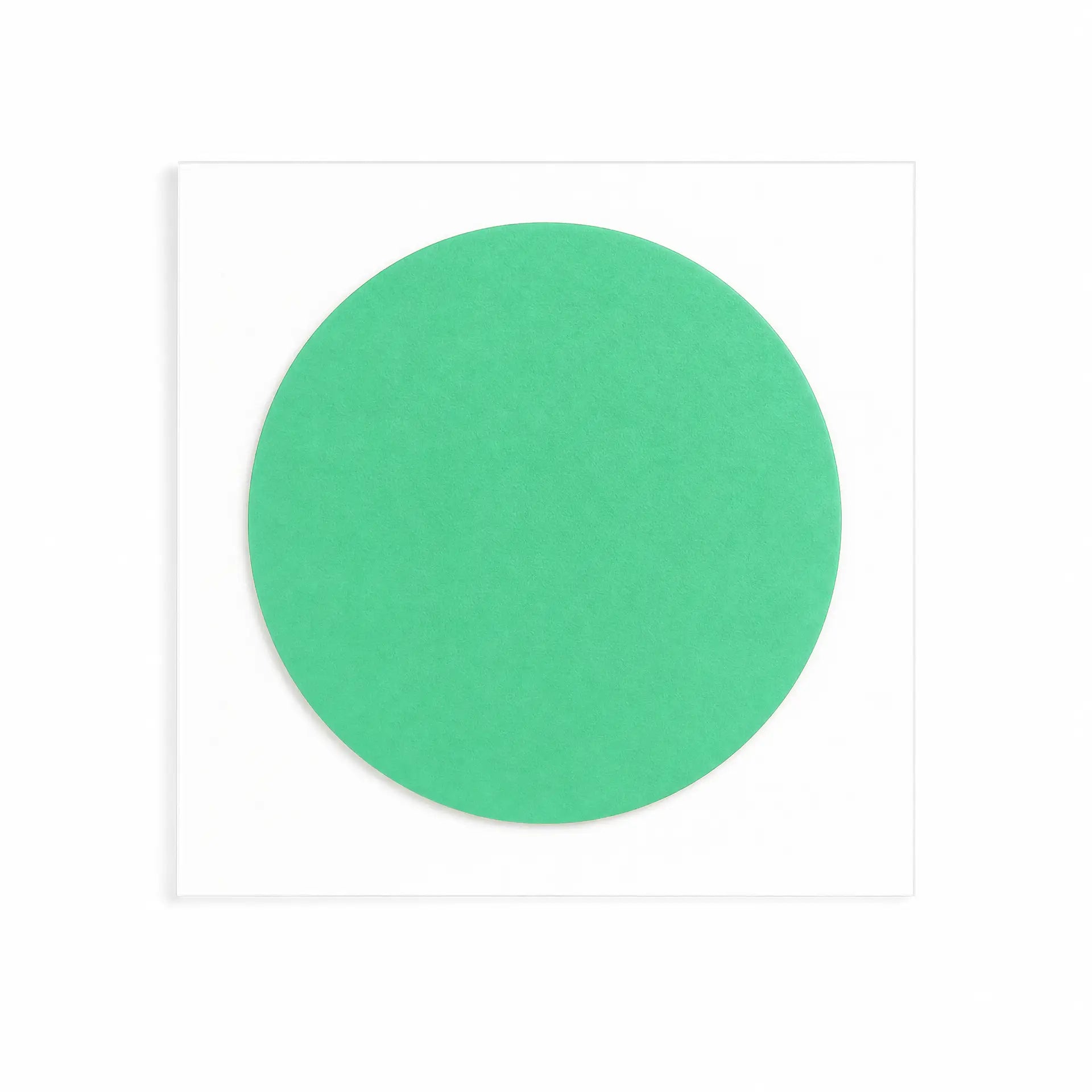

  • Custom Polyester Tape Die-Cuts

    Polyester tape or foil die-cut to your custom shape. Temp resistant to 204°C.

    Thickness, adhesive, and color can be specified to match your application requirements.

    Clean removal with no residue. Ideal for powder coating and e-coating.

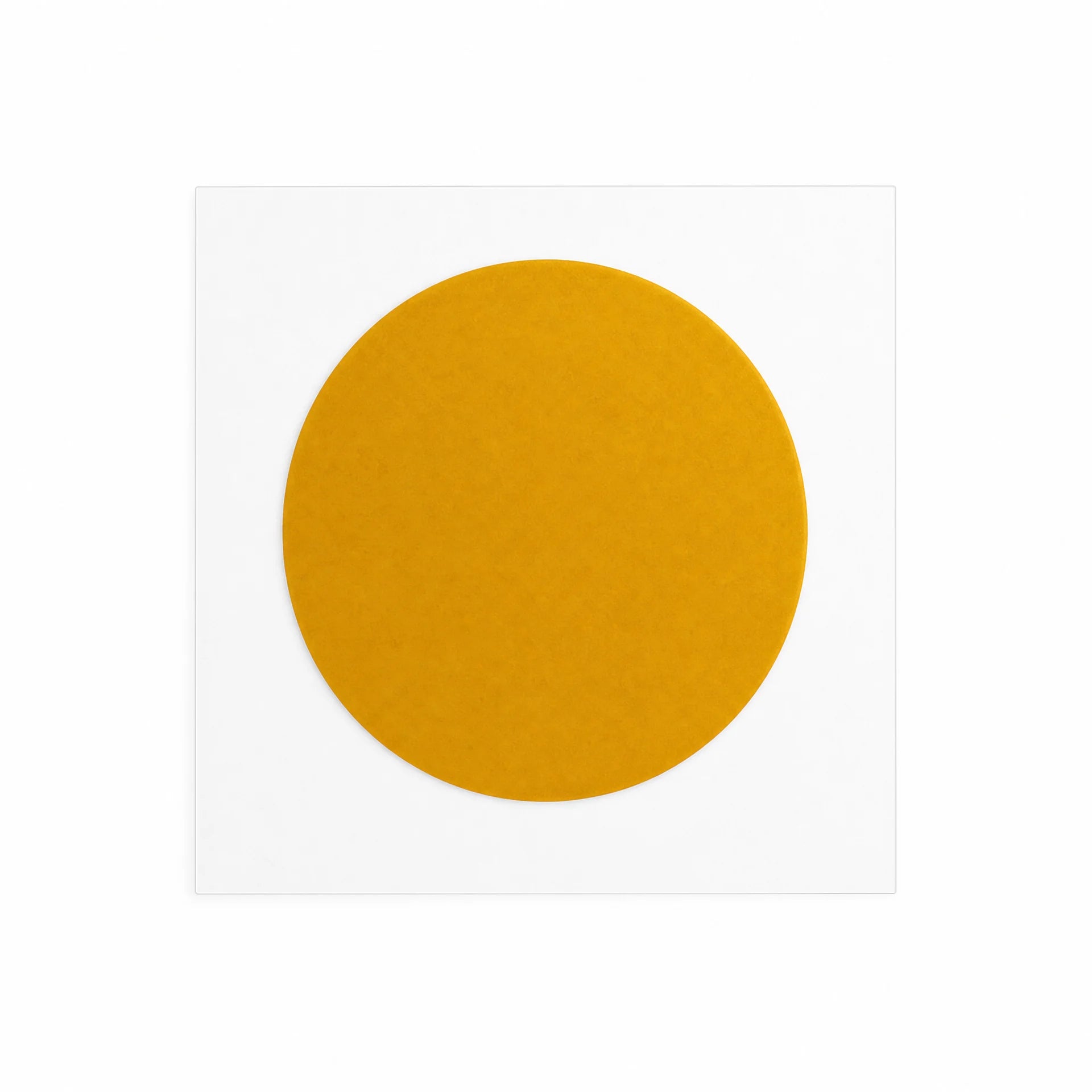

  • Custom Polyimide Tape Die-Cuts

    Polyimide (Kapton®) die-cuts for high-temperature processes up to 260°C.

    Thickness and adhesive can be specified to match your requirements. Clean removal with no residue.

    Ideal for electronics manufacturing, wave soldering, and high temperature coating.

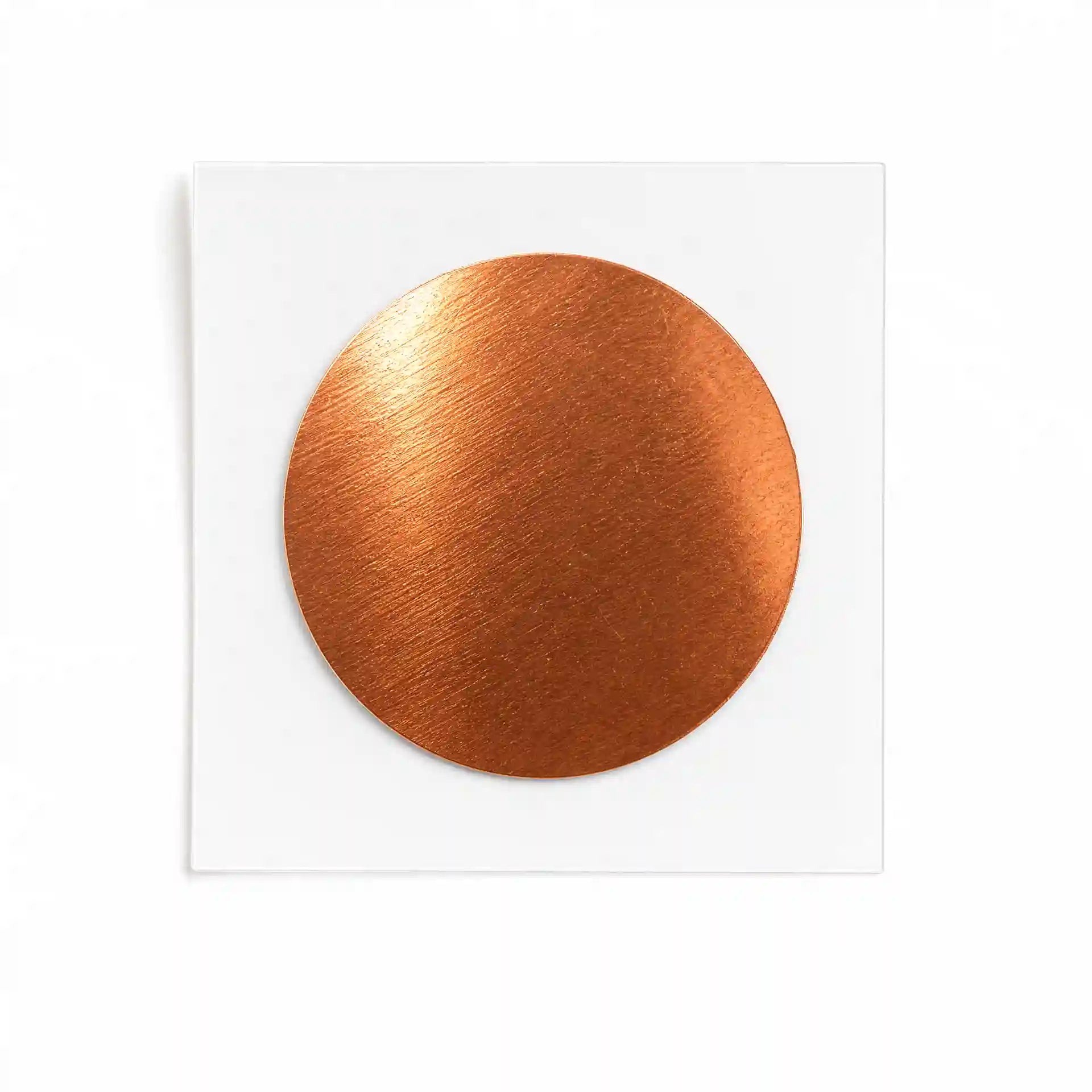

  • Other Speciality Materials

    Other specialty die-cuts including glass cloth, copper, aluminium, lead, and thermal spray protection tape.

    Materials and adhesive systems can be tailored to your requirements.

    Clean removal with no residue. Suitable for high-temperature, shielding, and specialty masking applications.

1 3
Request a Custom Masking Solution

Tailored for a wide range of applications.

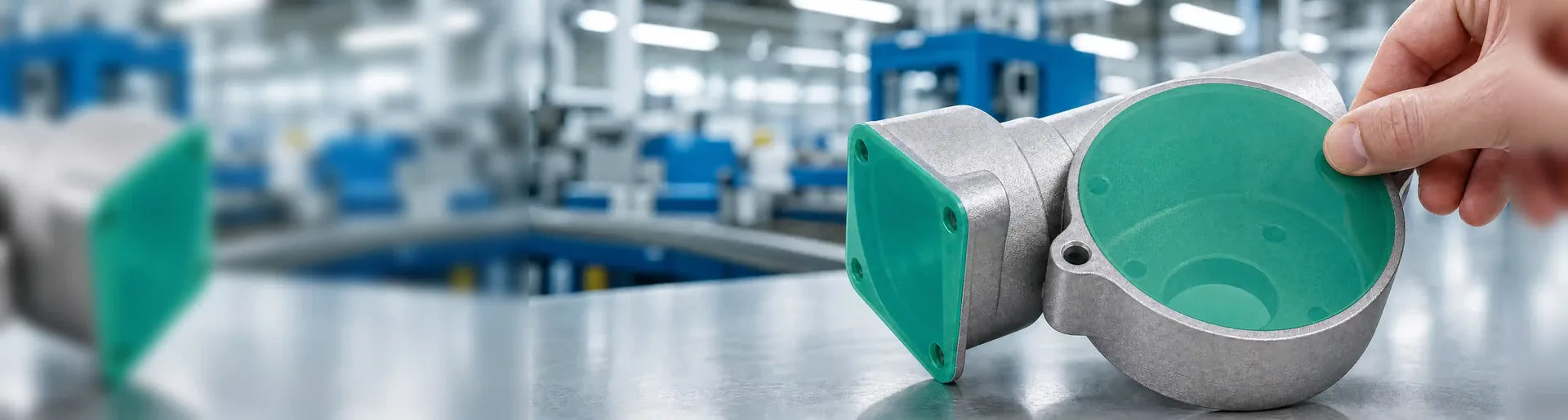

  • Surface Treatment & Coating

    Custom die-cut masking tapes for powder coating, e-coating, anodizing, plating, and wet painting. Pre-cut shapes eliminate hand-trimming, deliver consistent masking lines, and withstand the full thermal and chemical demands of each process.

    Typical Applications

    • Powder coating oven masking
    • E-coat and KTL bath masking
    • Anodizing tank masking
    • Wet paint and primer masking

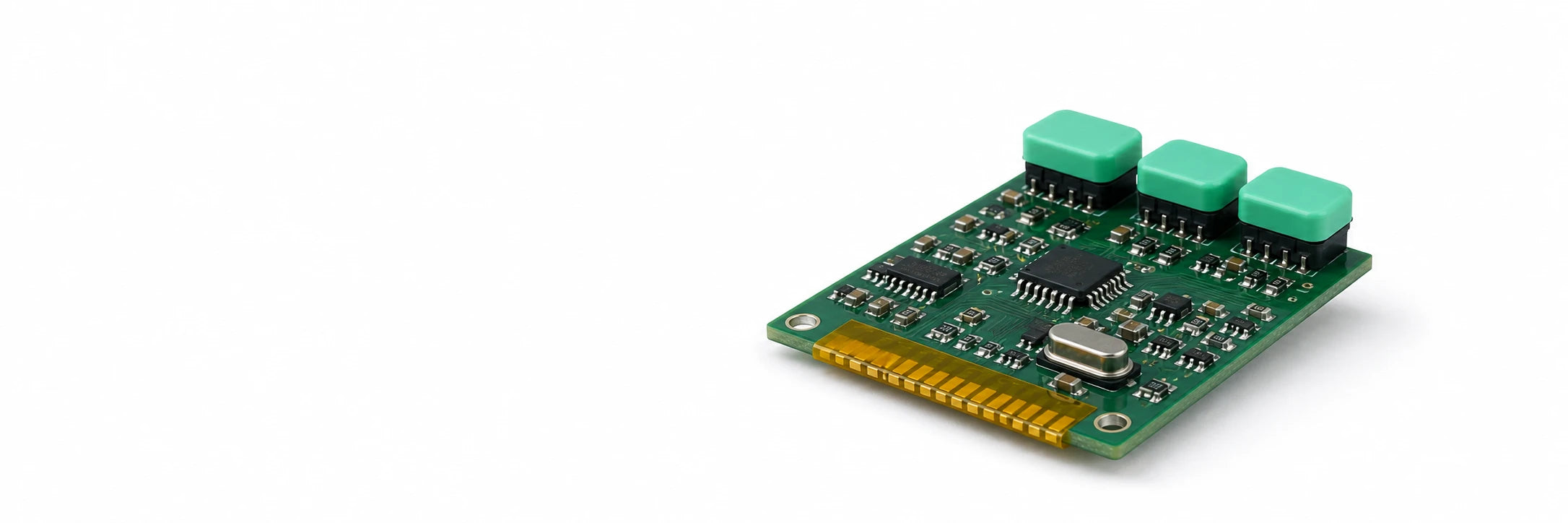

  • Electronics Manufacturing

    High-precision Kapton® and polyimide die-cuts for conformal coating, wave soldering, and PCB assembly. Protect gold fingers, edge connectors, and sensitive components from heat, solder flow, and chemical exposure with clean-removing, residue-free masks.

    Typical Applications

    • PCB conformal coating keep-out
    • Wave soldering protection
    • Connector and contact masking
    • SMT and through-hole assembly

  • Industrial Protection & Assembly

    Die-cut masking kits and custom shapes for protecting machined surfaces, grounding points, and critical features during manufacturing, assembly, and transport. Supplied as kits for complete component masking in a single operation.


    Typical Applications

    • Grounding point protection
    • Machined surface masking
    • Multi-feature masking kits
    • Assembly and transport protection
1 3

Our process from request to production supply.

Step 1

Application Review

We review your drawing, CAD model, or part sample. The review covers the feature to be masked, process type (e.g., powder coating, anodizing), temperature exposure, chemical environment, and the required masking tolerance.

Step 2

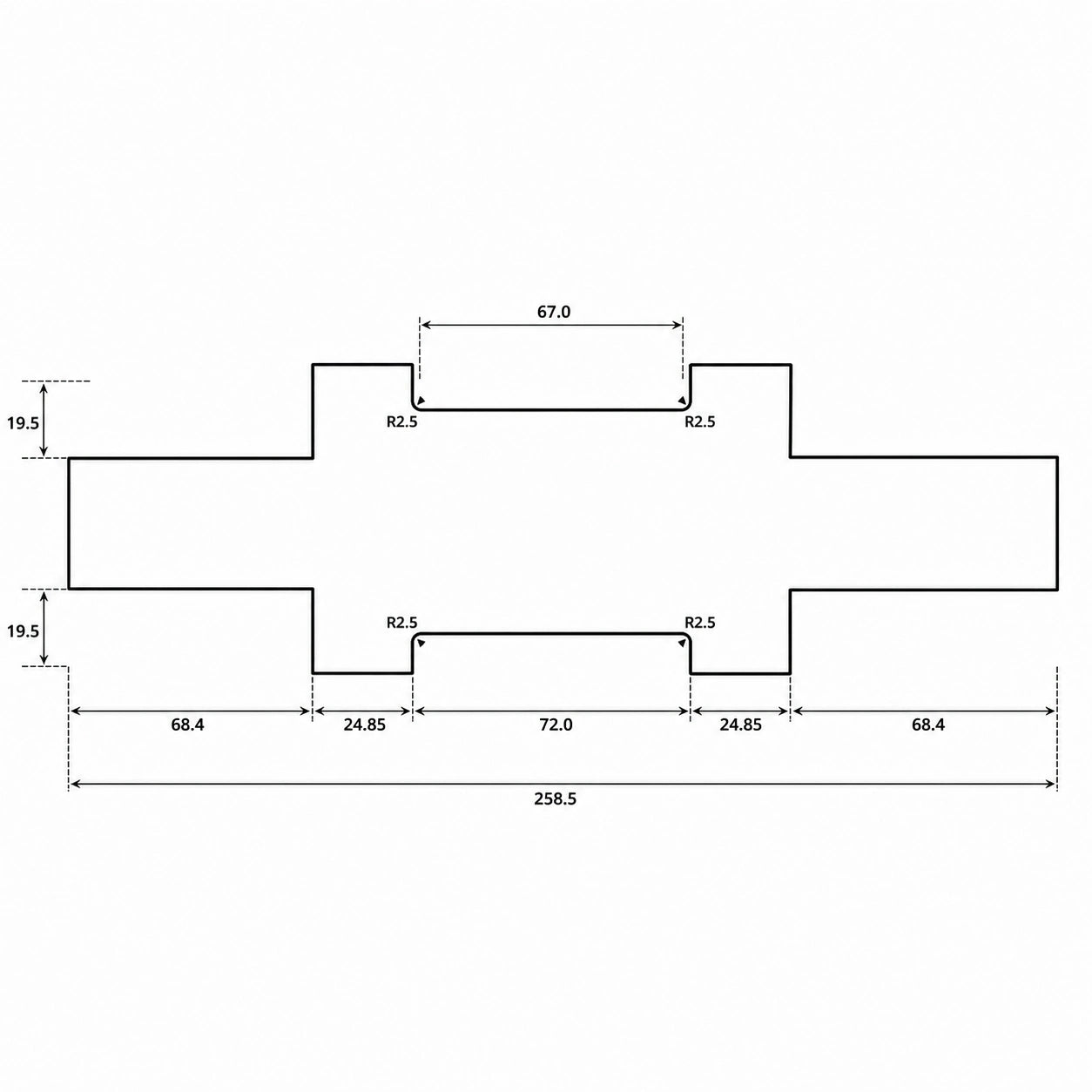

Concept Development

Based on the application review, we select the optimal tape material (Polyester, Kapton®, Foil, Crepe) and design the die-cut shape. We incorporate productivity features such as pull-tabs for easy removal, slit-back liners for fast application, or alignment marks for precise positioning.

Step 3 (optional)

Prototyping & Sampling

Prototype die-cuts are produced for fit, handling, and process validation. This step confirms that the masking tape has the correct shape and accuracy and performs as planned in its application, full series production is committed.

Step 4

Production Supply

Following successful validation, the die-cuts move to repeatable series production using rotary or flatbed die-cutting equipment. Parts can be supplied loose, on continuous rolls, or as complete component-specific masking kits to support your production line efficiency.

Engineering Criteria

Engineered around the variables that decide your production efficiency

Material Selection

The right material depends on your process temperature, chemical exposure, and required masking duration.

Polyimide (Kapton) is the standard choice for powder coating, e-coating, and high-temperature paint curing, rated to 260°C. Polyester (PET) suits lower-temperature processes up to 150°C and is commonly used for wet spray painting and anodizing. Crepe paper is a cost-effective option for short-duration masking up to around 120°C. Aluminium and lead foil die-cuts are used where conductivity or radiation shielding is required, such as selective plating and EMI shielding.

Material selection is confirmed during the application review before tooling is cut.

Adhesive Selection & Residue

Adhesive grade is the primary factor in residue risk. Silicone adhesives leave the least residue at elevated temperatures and are the standard choice for powder coating and e-coating. Acrylic adhesives offer stronger initial tack and suit lower-temperature processes. Rubber adhesives are used for short-duration masking where easy removal is the priority.

All custom die-cuts are supplied with adhesive grades matched to your process temperature and substrate. For sensitive surfaces such as anodized aluminium or precision-machined bores, adhesive tack level and release characteristics are confirmed during sample qualification before series supply begins.

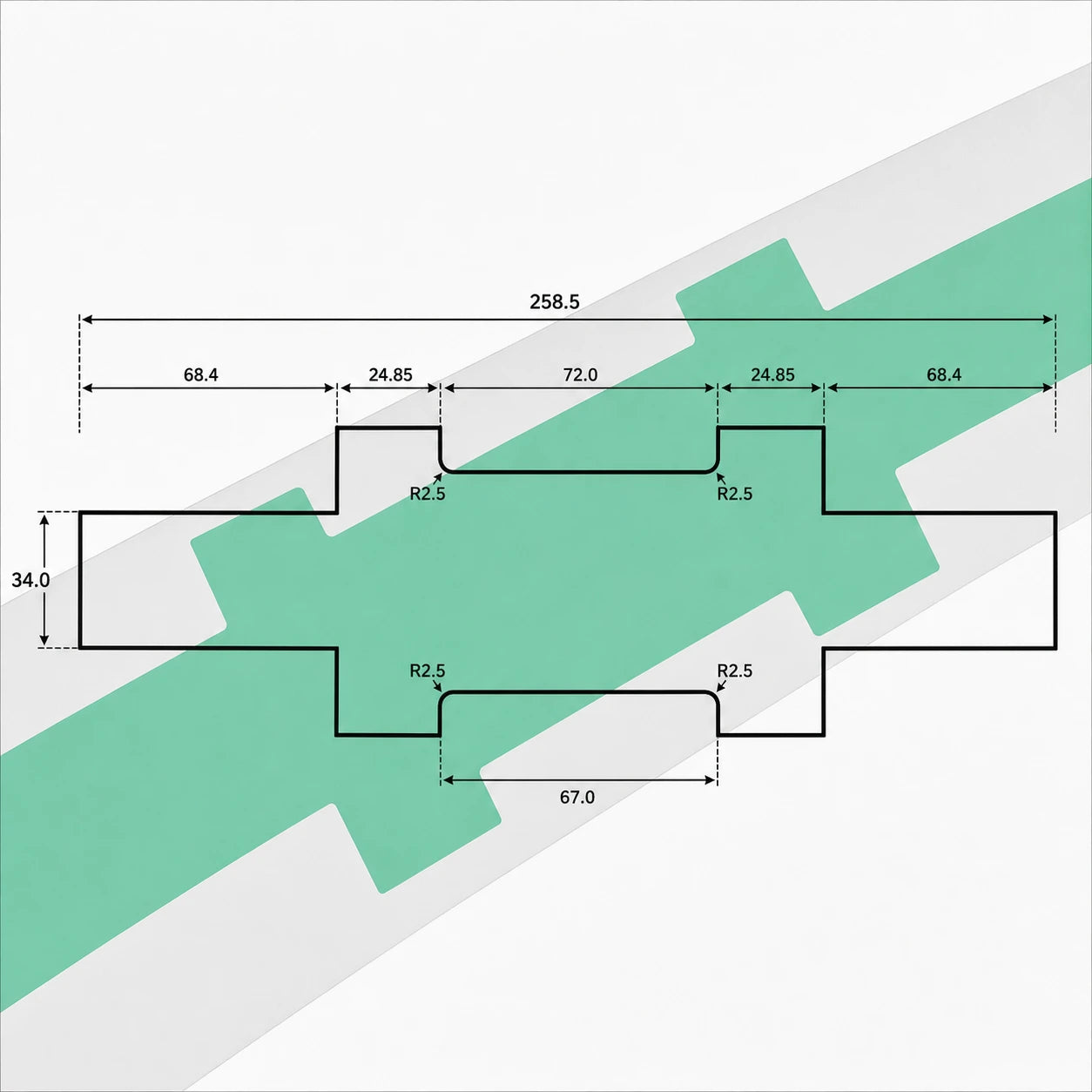

Dimensional Accuracy & Edge Quality

Custom die-cuts are produced to ±0.1 mm dimensional accuracy. Edge quality is clean and consistent across the full production run, with no burrs, tears, or adhesive squeeze-out at the cut edge.

For parts with tight masking zones such as narrow annular rings, small-bore covers, or shapes with multiple cut-outs, dimensional accuracy at the edge is critical to prevent coating bleed under the foil. Samples are supplied before series production to allow you to validate edge fit and coverage in your actual process environment.

Liner Configuration & Application Speed

Liners can be supplied with pull-tabs, extended flap sections, or slit-back configurations that allow operators to place and remove parts quickly without touching the adhesive surface.

For high-volume lines, die-cuts can be supplied in roll or fan-fold format for dispenser compatibility, or as pre-kitted sets on a single carrier liner where one kit covers one complete part. This eliminates counting and selection steps at the line and reduces the risk of missed masking zones on complex or variant-heavy parts.

MOQ, Lead Time & Repeat Orders

Tooling is a one-time investment. Once your die is cut, it is held at no charge for the lifetime of your project.

Sample sets are typically available within 5 to 7 working days. Series production starts from 1,000 pieces per shape. Repeat orders are fulfilled from finished-goods stock where possible, with standard lead times of 5 to 10 working days depending on quantity and material.

For high-volume programmes, we offer scheduled release orders and consignment stock arrangements to ensure line continuity without overstocking.
