Industrial finishing processes like powder coating, anodizing, and painting are essential for protecting and enhancing the appearance of manufactured goods. A critical step in these processes is masking, which involves protecting specific areas of a part from the coating. While a vast array of standard masking products like tapes, caps, and plugs are available, they are not always sufficient for every application. Complex part geometries, stringent quality requirements, and high-production volumes often necessitate custom-engineered masking solutions.
This article explores the reasons why custom masking solutions are often a necessity, details the development process from initial design to final production, examines the two primary types of custom solutions—custom-molded silicone and precision die-cuts—and provides a framework for calculating the return on investment (ROI) of a custom solution.
Why Standard Masking Isn't Always Enough
Standard, off-the-shelf masking products are designed to fit common shapes and sizes, such as standard holes, threads, and studs. However, modern manufacturing often involves components with intricate designs and unconventional contours. In these scenarios, standard products fall short for several reasons:
- Complex Geometries: Parts with irregular shapes, curved surfaces, and tightly spaced features cannot be effectively masked with standard tapes or plugs. Attempting to do so often results in bridging, where the mask lifts in corners, or paint bleed, where the coating seeps under the mask's edge. This leads to costly rework and a higher scrap rate.
- Unique Process Requirements: Certain finishing processes involve extreme temperatures, aggressive chemicals, or high pressures that standard masking materials cannot withstand. For example, a powder coating process requires masks that can endure high curing temperatures without degrading or leaving residue. Custom solutions utilize materials specifically chosen for their performance in these demanding environments.
- High-Volume Production: In a high-volume production setting, efficiency is paramount. Manually cutting and applying standard masking tape to complex parts is a time-consuming, labor-intensive process that can create a significant bottleneck. Custom-designed masks, which are made to fit the part perfectly, can be applied in a fraction of the time, dramatically increasing throughput.
The Custom Masking Development Process
The journey from identifying a need for a custom mask to full-scale production involves a collaborative, multi-step process between the customer and the masking solutions provider.
Step 1: Consultation and Design
The process begins with a thorough consultation. The customer provides the engineering team with a 3D CAD model of the part, a 2D drawing, or a physical sample. They also share detailed information about the finishing process, including the type of coating, temperature cycles, and chemical exposure. This allows the engineers to understand the precise areas that need to be masked and the performance requirements of the masking material.
Step 2: Prototyping and Validation
Once the initial design is complete, a prototype is created for testing. For custom-molded parts, 3D printing is often used to create a functional prototype in a matter of days. For precision die-cuts, a laser or die-cutter can quickly produce samples. The customer then tests the prototype on their actual part and in their finishing process to validate its form, fit, and function. This iterative step is crucial for refining the design and ensuring the final product will perform flawlessly.
Step 3: Tooling and Mass Production
After the prototype is approved, the production tooling is created. For molded parts, this involves machining a high-precision steel or aluminum mold. For die-cuts, a custom steel-rule die is fabricated. Once the tooling is complete, mass production can begin, providing the customer with a consistent and reliable supply of custom masking solutions.
Types of Custom Masking Solutions
Custom masking solutions generally fall into two main categories: custom-molded parts, typically made of silicone, and precision die-cuts, made from high-performance tapes.

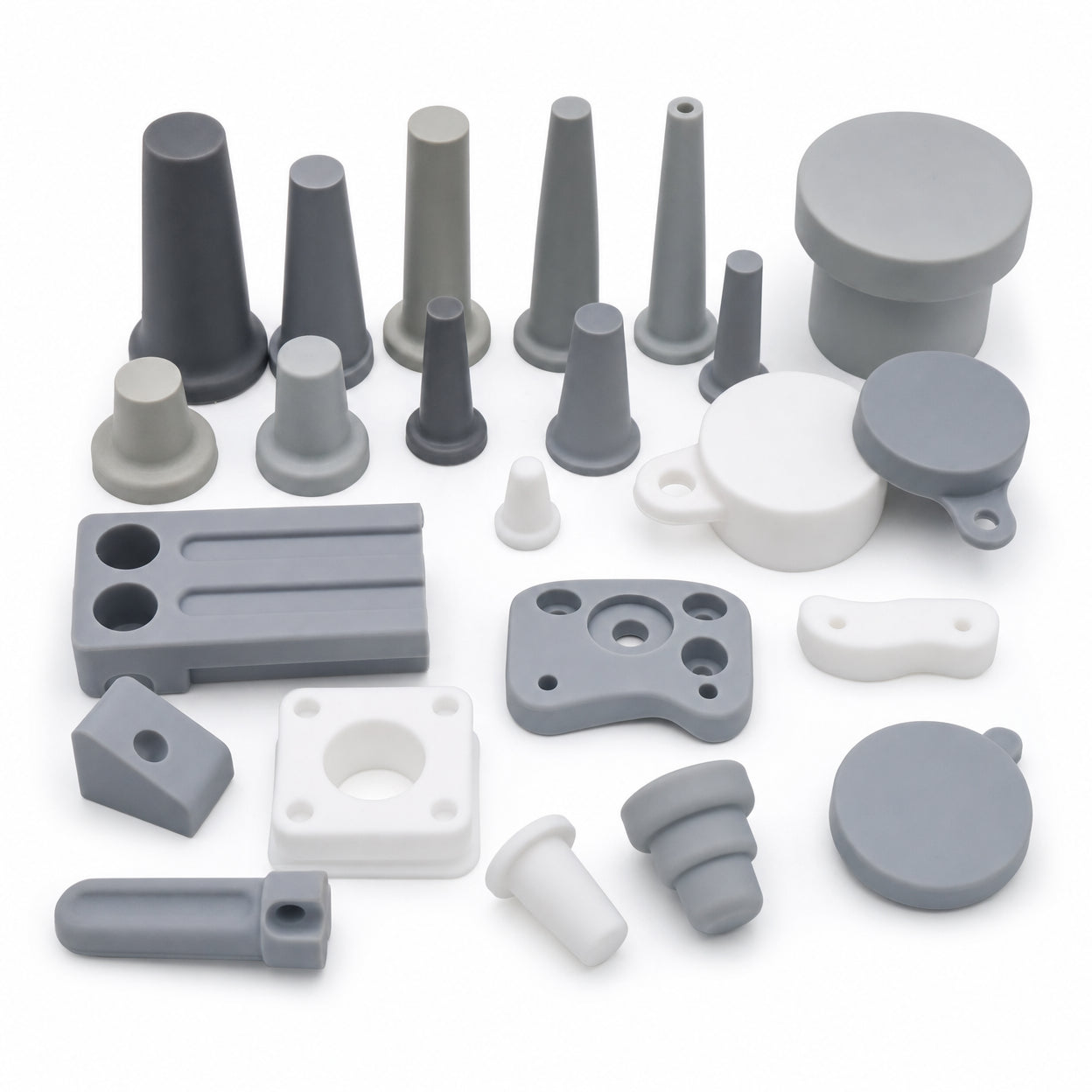

Custom-Molded Silicone
For masking complex three-dimensional features, custom-molded silicone parts are the ideal solution. Silicone is a highly versatile material with an excellent performance profile for masking applications. Its inherent flexibility allows it to conform to irregular shapes and create a tight seal, while its high-temperature resistance (often up to 315°C (600°F)) makes it suitable for powder coating and other high-heat processes. Furthermore, the natural release properties of silicone rubber prevent it from bonding to the part, ensuring clean removal without leaving residue.
These parts are reusable, often for hundreds of cycles, which makes them a very cost-effective solution in the long run. The molding process can produce highly intricate parts that can mask multiple features at once, significantly reducing application time.

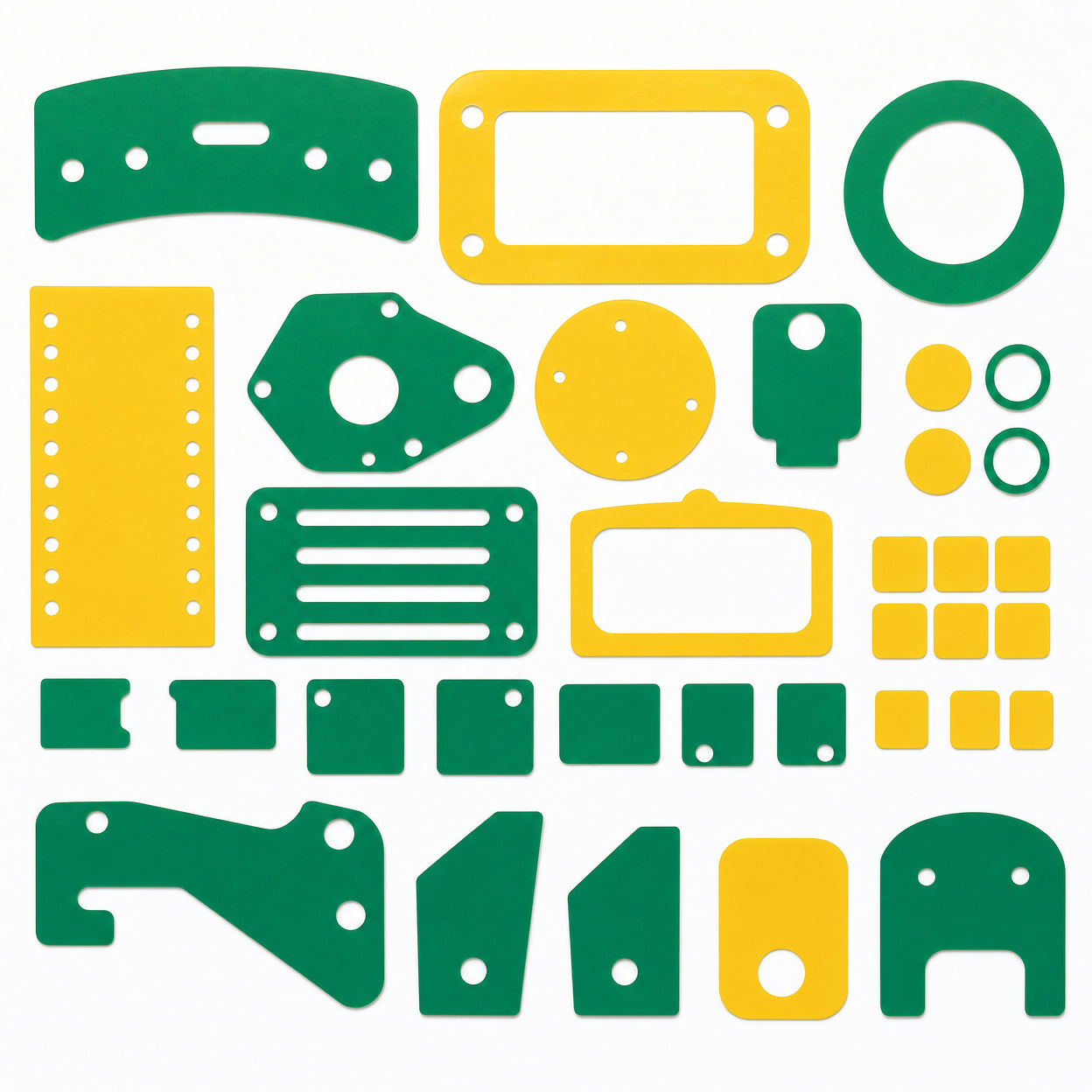

Precision Die-Cuts
When masking flat or gently curved surfaces, precision die-cuts offer a fast, accurate, and cost-effective solution. These are custom-shaped masks cut from high-performance masking tapes, such as polyester or polyimide. The choice of tape depends on the specific application; for guidance, see our article on how to choose the right masking tape.
Die-cutting technology allows for extremely tight tolerances, ensuring that the mask fits the designated area perfectly every time. To improve application speed and ease of use, die-cuts can be designed with features like split liners for easy removal from the backing and pull-tabs for quick removal from the part after coating. They can be supplied as individual pieces or on rolls for automated application.
Calculating the Return on Investment (ROI)
While custom masking solutions involve an initial investment in tooling and design, the long-term savings often far outweigh the upfront cost. The ROI is driven by improvements in several key areas of the production process.
| Cost Factor | Manual Masking (Standard Tapes) | Custom Masking Solution |
|---|---|---|
| Labor Time per Part | High (minutes per part) | Low (seconds per part) |
| Application Skill | Requires skilled, careful labor | Can be applied by any operator with minimal training |
| Rework / Scrap Rate | Higher due to inconsistent application and paint bleed | Significantly lower due to precise fit and reliable seal |
| Production Throughput | Lower, often a bottleneck in the finishing line | Higher, enabling faster overall production cycles |
| Material Waste | High, from trimming tape and rejected parts | Minimal, as parts are precisely cut with optimized nesting |
To calculate the potential ROI, consider the following:
- Calculate Labor Savings: (Time per part with manual masking - Time per part with custom mask) x Labor rate x Number of parts.
- Calculate Rework Savings: (Rework rate with manual masking - Rework rate with custom mask) x Cost per rework x Number of parts.
- Total Savings: Labor Savings + Rework Savings.
- ROI: (Total Savings - Initial Tooling Cost) / Initial Tooling Cost.
A positive ROI indicates that the investment in custom masking will pay for itself and generate ongoing savings.
Conclusion
